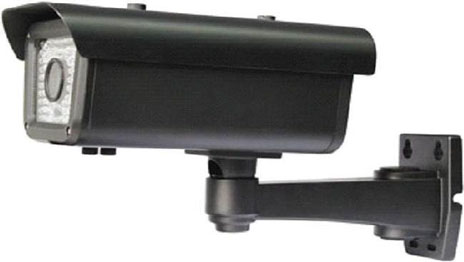

| SecuGuard ANPR Number Plate Camera 10~40mm Lens, 180km/h , 3~30m IR |
| |
|
| ANPR Camera License plate recognition |
|
|
|
|
| Features |
|
1/3" Sony Black&White High Resolution CCD |
|
High Resolution 560TVL with 20 Super High Power LEDs |
|
External Vari-focal Auto Iris lens 10 ~ 40mm adjustment |
|
Clearly capture the number plates of vehicles travelling less than 180km/h |
|
Vandal resistance and WaterProof IP-66 rated |
|
Designed for Carpark,Drive Through, Toll Gate, etc. |
|
Dual Voltage AC24V/DC12V |
|
24 Months Warranty |
|
Accessory: |
|
 JB-34 : Junction Box |
|
|
| SecuGuard Car Number Plate Camera Testing |
|
|
|

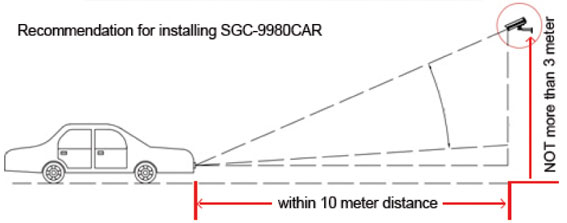

| Installation Recommendation |
|
|
|
| Specification |
| Image Sensor |
1/3" SONY Black&White CCD Image Sensor |
| Effecitve Pixels |
PAL 795 (H) * 596 (V) |
| Scanning System |
2:1 Interlaced |
| IR LED |
20 PCs Super High Power LEDs |
| Audio output |
RCA*1 |
| Resolution |
560TVL |
| Min. Illumination |
0 Lux (IR ON) |
| S / N Ratio |
More than 45dB |
| Gain Control |
Automatic |
| Video Output |
Composite Video Signal: 1.0Vp ~ p75 ohm |
| Gamma |
0.45 |
| Shutter |
PAL (1 / 50 ~ 1 / 100, 000) |
| Power Supply |
Dual Voltage AC24V/DC12V |
| Consumption |
1.3A (IR ON) |
| Lens |
10 ~ 40mm Varifocal Lens (External Adjustment) |
| Operating Temp |
-10 Degree ~ +50 degree RH95% Max |
| Storage Temp |
-20 Degree ~ +60 degree RH95% Max |
| Dimension |
496x240x140mm |
| Weight |
2.5kg |
|
|
|
|
|
| |
| |
|
|
|
|
|
