| 16CH, H.264, SATA VGA, USB, Remote Control |
| |
|
| 16 CH H.264 Multiplex DVR |
 |
|
|
|
|
|
|
| Specification |
| Video Compression |
Advanced H.264 Codec video Triple Streaming Network |
| Vedio input |
16 x BNC Composite Video input |
| Vedio Output |
BNC*1, VGA*1 |
| Channel Vedio Loop Output |
BNC*8 or BNC*16 (Optional) |
| Audio input |
RCA*8 (Optional) |
| Audio output |
RCA*1 |
| sensor In /Alarm out |
16 sensor in/ 1 Alarm out |
| Display Speed |
PAL: 400fps |
| Recording Resolution (Pixels) |
PAL:720*576,720*288,360*288(D1/Half-D1/CIF) |
| Recording & Playback Speed |
PAL: 100fps(720*576),200fps(720*288),400fps(360*288), 1/2x, 1x, 2x, 4x, 8x, 16x, 32x |
| Picture quatlity |
4 levels (Very High, High, Standard, Low) |
| Mode |
Normal,Motion,Alarm,Sensor,Schedule, Holiday,Manual |
| Hard Disc Type |
SATA HDD x 2 |
| Back up device |
USB flash disk |
| POS |
POS Text-in from RS232/RS485 |
| Remote Operation |
ActiveX Base Web Live & Search / HDx Viewer and CNB CMS Access (Live, Setting, Search, Recoding, ETC.) / Event Alarm Callback, Remote Site System Check with HDx Viewer and CNB CMS |
| Smart Phone Operation |
iPhone, Android: iMon2 (Live Video/Audio, Playback, Setting) |
| Users |
5 users allowed to log on DVR simultaneously with independent operation |
| Event Notification |
Emails (up to 10 settings/Gmail supported) |
| Image format output |
H.264 New Technology |
| OSD |
GUI(Graphical user interface) |
| DVR Control |
USB Mouse,Remote control |
| Recovery |
Watchdog |
| Dimension |
340mm (W) × 67mm (H) × 267mm (D) |
| Power Input |
12V |
| Weight |
2kg (Without HDD) |
|
|
| Package Contents |
|
Digital Video Recorder (DVR)
Power Cord
IR Remote Control
USB Mouse
User Manual CD
Quick Guide Manual
Screws
No Hard Disk included in the package
|
|

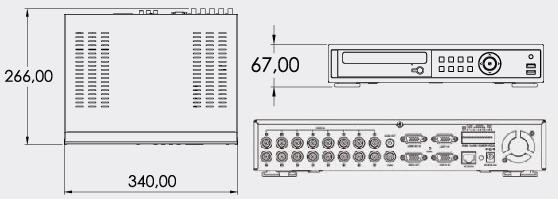

| Dimention |
 |
|
|
|
|
| |
| |
|
|
|
|
|
