| 25m IR, MPEG4 & MJPEG,CCD |
| |
|
|
 |
Introduction |
|
JJ NetWatch™
Night Vision Network IP Camera features a standalone system, which means a camera and a computer combined in a small package. Built-in A/V encoder module and web server provide users to view images through IP network with a browser on any computer connected to network. And it can be installed easily and friendly by using a IP configuration software to assign an IP to your IP camera.
|
|
 |
Features |
> Embedded OS
> Built-in Web Server
> Transmission Video & Audio Through Internet
> Motion Detection
> Transmission Image via FTP/EMAIL
> View with IE Browser
> Ethernet 10/100 Mbps
> Build-in Microphone
> Protocol: TCP/IP, HTTP, SMTP, DNS, DDNS, NTP, PPPoE, DHCP Client
> FCC/CE Approval
> 25~30 Meters night vision
> MJPEG & MPEG-4 Dual Codec
> Multi-profile encoder
> VGA resolution output
> Up to 25 FPS
> 1/3" Sony CCD Sensor
> TV-Out(BNC) / PAL
> Low light sensitivity of 0.01 Lux
> Built in Web server
> Supports UPnP
> Waterproof Housing
> 16 CH Recording Software Included
|
|
| |
Specification |
 |
| Introduction |
|
JJ NetWatch™ B2500IP is a 3GPP/ISMA-compatible 25M IR network camera, offering superior image quality and optimized bandwidth efficiency by MPEG-4 & M-JPEG dual codec implementation. Users can easily access it and receive live video by computers, or cellphones , anytime, anywhere for outdoor surveillance and remote monitoring. |
|
|
|
| Features |
|
|
Built-in Web server |
|
MJPEG and MPEG-4 Video Compression Selectable |
|
High quality 1/3" Sony CCD sensor |
|
Low light sensitivity of 0.05 Lux |
|
HIGH-LIGHT LED x 8pcs |
|
IR distance: 25 meters |
|
Composite video BNC output(TV-out, PAL) |
|
Multi-profile encoder |
|
3GPP for 3G mobile remote application |
|
Intelligent motion detection (up to 4 windows) |
|
Upload video clip to an e-mail acount and FTP servers by event trigger or schedules |
|
Notify event message to TCP Server and HTTP servers by event trigger or schedules (Firmware Version 3.0.2.2033 or above) |
|
Notify event message to TCP Server and HTTP servers by event trigger or schedules (Firmware Version 3.0.2.2033 or above). |
|
Support UPnP discovery |
|
Ourdoor Waterproof Housing |
|
Professional 16 CH Recording NVR Software Included |
|
|
|
| Dimensions |
|
Length: 139mm
|
|
Width: 79mm (Ø)
|
|
Weight: 650g
|
|
|
| Accessories (Option) |
|
|
|
|
|
|
|
| |
|
|
|

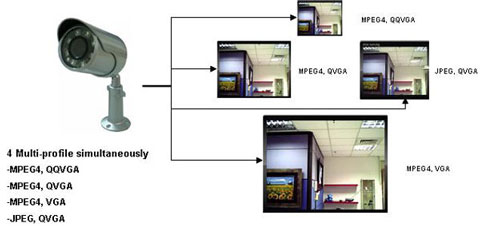

MULTI-PROFILE VIDEO |
| |
|
|
|
| |
|
|
|
3G MOBILE VIDEO SUPPORT |
| |
|
|
|
| |
|
|
|
Event Schedule (Firmware Version 3.0.2.2033 or above)
- Upload video clip to an email account and ftp servers
- Notify event message to TCP Servers and HTTP Servers |
|
|
|
| |
|
|
|
16-ch Recording NVR software included |
| ||
|
|
|
Recording:
Manual control, scheduled
Video only |
|
Playback:
Scheme: Date, time interval, and event triggering with preview for every camera
Controls: Play, Stop, Pause, Fast Forward, Slow Forward
|
|
E-Map:
E-MAP is a graphic control interface of 16ch. IP cameras. You can load
a photo or picture to IP-View. You can drag and drop the IP camera to
its installation location easily.
|
|
Supported OS:
Microsoft Windows 98 SE, ME, 2000,XP |
|
|
| |
| Specification |
|
| Model |
|
|
| System |
|
RAM: 32MB SDRAM |
|
Flash: 4MB NOR FLASH Memory |
|
|
| Networking |
|
Protocols: UPnP, RTSP, 3GPP, TCP/IP, HTTP, SMTP, FTP, NTP, DNS, DDNS, PPPoE and DHCP |
|
Ethernet: 10 baseT or 100 baseT Fast Ethernet auto negotiation |
|
|
| Video |
|
Algorithm:
MPEG4 and M-JPEG multi profile dual codec
JPEG for still image |
|
Features:
Adjustable image size, quality and bit-rate
Time stamp and text caption
Three configurable motion detection windowss
Flip & mirror |
|
Rosolution:
Up to 25 frames at 640x480
Up to 25 frames at 320x240
Up to 25 frames at 160x120 |
|
|
| Camera Specifications |
|
1/3" sony color CCD image sensor |
|
Low light sensitivity of 0.05 Lux |
|
AGC, AWB, AES |
|
Resolution: PAL 537(H) x 597(V) |
|
Electronic shutter: 1/50~1/100x000 sec. |
|
|
| Lens |
|
|
| IR LED |
|
AlglnP HIGH-LIGHT LED x 8pcs |
|
Reaches 25 meters |
|
|
| Security |
|
ID / Password 2 levels authentication |
|
|
| Dimensions |
|
Width: 79mm (Ø) |
|
Leight: 139mm |
|
|
| Weight |
|
650g (incld. braket: 140g) |
|
|
| Housing |
|
Aluminum with sunshield weatherproof |
|
Meet IP 66 standard |
|
|
| Power |
|
|
| Operating Environments |
|
Temperature: -10°C ~ 50°C |
|
Humidity: 85% RH |
|
|
| EMI & Safety |
|
|
| Viewing System Requirments |
|
Operating system: Microsoft Window 98 SE, ME, 2000, XP |
|
Browser: Internet Explorer 5.0 or above |
|
|
| Supplied Accessories |
|
DC Adapter, Bracket, CD (IP Tool, User Manual, NVR) |
|
|
|
|
| |
|
|
|
